TW1322

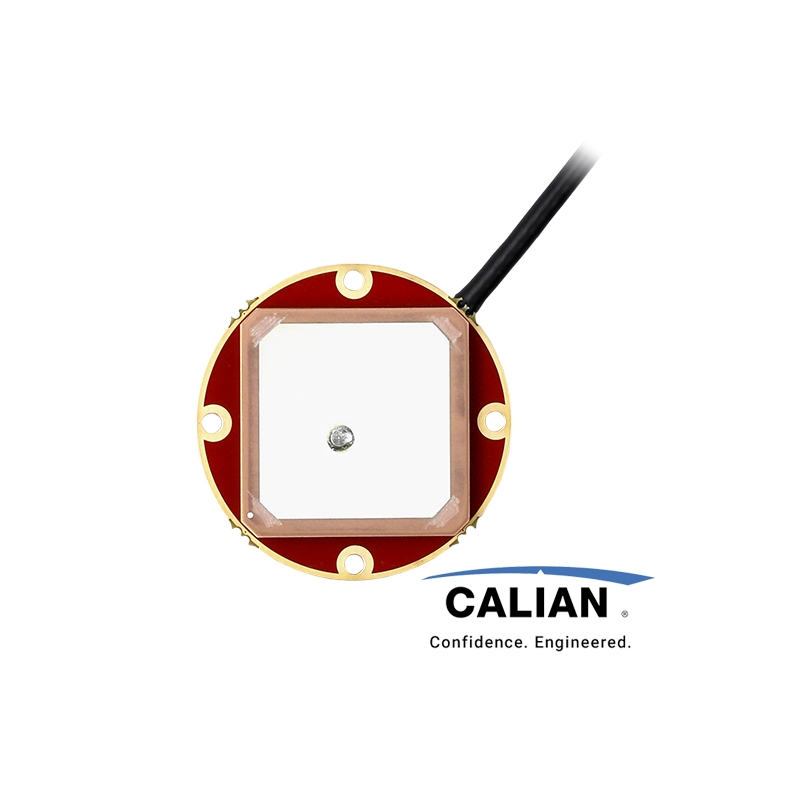

Embedded Single Band GNSS Antenna (Pre-filtered)
- 1dB bandwidth 1575MHz-1606MHz
- Very low noise LNA: 1 dB
- 4dB Axial Ratio @1590MHz
- High rejection SAW filter
- LNA gain: 26dB
- Very Low current : 9 mA typ.
- ESD circuit protection: 15 KV
- Wide Supply voltage: fixed 2.5V to 16V
- Great multipath rejection
- Increase system accuracy
- Excellent signal to noise ratio
- Great out of band signal rejection
- Compact form factor
- RoHS compliant
The TW1322 is a high-performance, cost-effective GNSS antenna designed for GPS/QZSS L1 and SBAS (WAAS, EGNOS & MSAS).
Key Features
- Enhanced Bandwidth: The precisely tuned, single-feed patch element achieves 40% wider bandwidth compared to competitive antennas, supporting 1 dB RHCP received power across the full frequency bandwidth for GPS/QZSS L1 and GLONASS G1.
- Superior Signal Quality: Equipped with a dual-stage Low Noise Amplifier (LNA) and mid-section SAW, the TW1322 ensures excellent axial ratio across the entire frequency range.
- Advanced Filtering: The LNA pre-filter provides robust protection against high-level sub-harmonic signals such as LTE and nearby frequency signals like WiFi.
Custom Tuning Services
Calian offers custom tuning services to optimize the performance of the TW1322 for any OEM installation environment.
| Antenna Frequency | Single Band GNSS |
| Mount | OEM / Embedded |
| Brand | Calian |
| Description | Part-Number |
|---|---|
| TW1322 | 33-1322-xx-yyyy |
