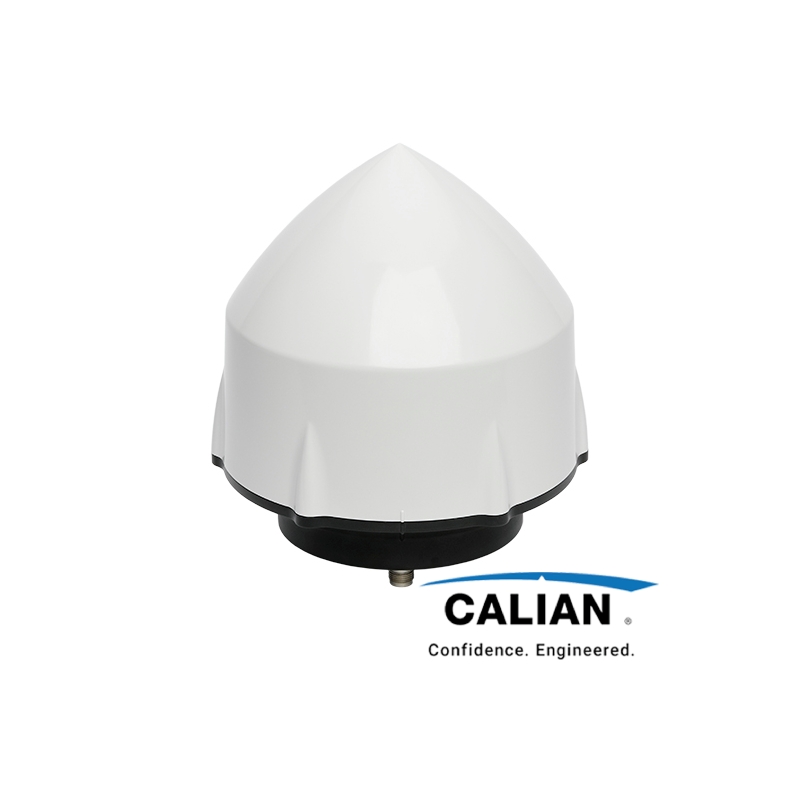

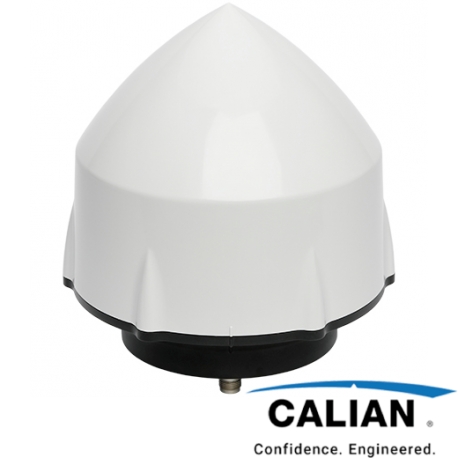

VP6335

VeraPhase® Triple-Band GNSS Antenna

More details

Features

  • Ultra-low axial ratios from horizon to horizon
  • Sub-millimeter phase center variation (< 1 mm)
  • Minimal power consumption
  • Wide input voltage range: +2.7 to 24 VDC
  • Internal space for integrated PPP, RTK receiver, or other OEM systems

Benefits

  • Reliable, consistent performance across all supported frequencies
  • Full elevation tracking from 0° to 180°
  • High-precision signal reception
  • Superior multipath signal rejection
  • Compliant with IP67, REACH, and RoHS standards
  • Accelerated integration and reduced time to market

Overview

The VP6335 VeraPhase® antenna utilizes Calian’s advanced VeraPhase® technology to deliver outstanding performance across a broad range of GNSS signals, including:

  • GPS/QZSS: L1, L2, L5
  • GLONASS: G1, G2, G3
  • Galileo: E1, E5a, E5b
  • BeiDou: B1, B2
  • SBAS: WAAS, EGNOS, GAGAN, MSAS

Engineered for Precision

Optimized for high-precision reference stations, the VP6335 offers exceptional performance across the full GNSS bandwidth. Key features include:

  • Ultra-low axial ratios: <0.5 dB at zenith and typically <2 dB at the horizon, across all azimuths and frequencies
  • Excellent front-to-back ratio
  • Tight Phase Center Variation (PCV)
  • Stable Phase Center Offset (PCO) across all elevation and azimuth angles

High Gain & Signal Integrity

The VP6335 ensures strong signal reception throughout the GNSS spectrum. Its robust, pre-filtered Low Noise Amplifier (LNA) includes:

  • High third-order intercept point (IP3) to mitigate de-sensing from strong out-of-band signals (e.g., 700 MHz LTE)
  • Low noise figure for superior signal clarity

Custom Integration Ready

An uncommitted PCB area is available within the antenna base, enabling seamless integration of custom system boards such as:

  • PPP or RTK GNSS receivers
  • Other specialized applications
Antenna FrequencyTriple Band GNSS
MountSurvey Mount
BrandCalian

ANT_VP6335_DS

Data sheet for the Calian VP6335 GNSS Antenna

Download (487.83k)
DescriptionPart-Number
VP633533-633500-ee-ff
