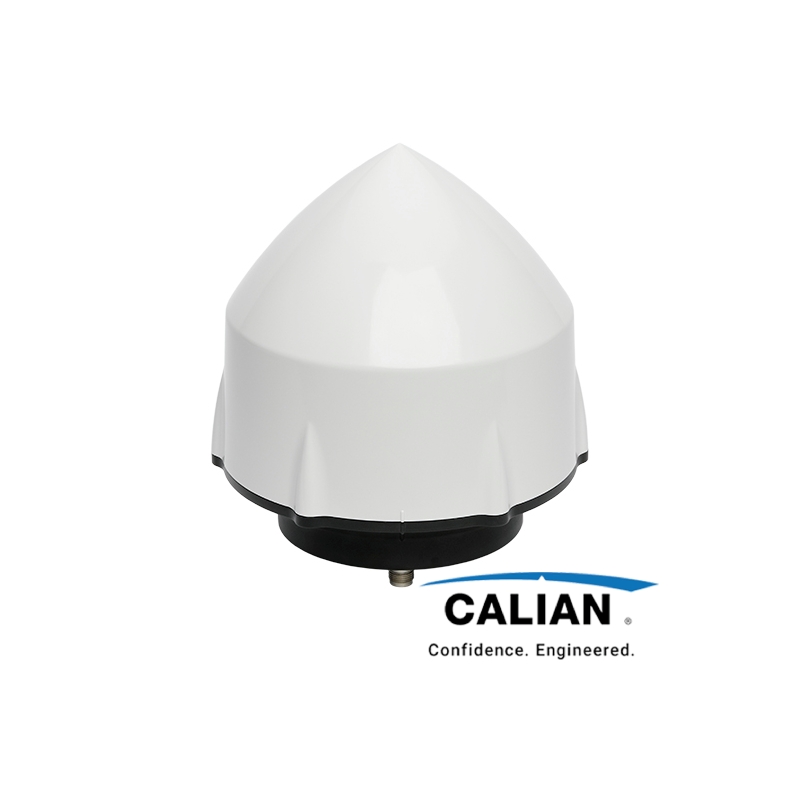

VP6050

VeraPhase® Full GNSS Antenna with L-Band Support

More details


Features

  • Ultra-low axial ratios across full elevation range (0°–180°)
  • Minimal phase center variation (< 1 mm)
  • Low power consumption: 45 mA
  • Stable performance across wide voltage range: +2.7 to 24 VDC
  • Housing accommodates integrated PPP and RTK modules

Benefits

  • Reliable performance across all GNSS frequencies
  • Full-sky tracking capability (horizon to horizon)
  • High-precision signal reception
  • Superior multipath rejection
  • Compliant with IP67, REACH, and RoHS standards
  • Accelerates product development and market readiness

Overview

The VP6050 VeraPhase® antenna from Calian features advanced VeraPhase® technology, delivering full-spectrum GNSS coverage. It supports:

  • GPS/QZSS: L1, L2, L5
  • GLONASS: G1, G2, G3
  • Galileo: E1, E5a, E5b, E6
  • BeiDou: B1, B2a, B2b, B3
  • QZSS: L6
  • NavIC: L5
  • SBAS: WAAS, EGNOS, GAGAN, MSAS
  • L-Band: Correction services

Engineered for Precision

Designed for high-precision reference stations, the VP6050 delivers exceptional performance across the entire GNSS bandwidth. It offers:

  • Ultra-low axial ratios: <0.5 dB at zenith, typically <2 dB at the horizon
  • Outstanding front-to-back ratio
  • Tight Phase Center Variation (PCV)
  • Stable Phase Center Offset (PCO) across all azimuth and elevation angles

Superior Signal Integrity

The VP6050 features a high-gain, pre-filtered Low Noise Amplifier (LNA) with a high third-order intercept point (IP3), effectively minimizing signal degradation from strong out-of-band sources such as 700 MHz LTE. Despite this robust filtering, it maintains a low noise figure, ensuring clean and accurate signal reception.

Certified and Calibrated

The VP6050 has been calibrated by GEO++, with type mean calibration files available through both the IGS and NGS databases, ensuring confidence in its use for professional and scientific applications.

L-band CorrectionRequired
Antenna FrequencyFull GNSS
MountSurvey Mount
BrandCalian

ANT_VP6050_DS

Data sheet for the Calian VP6050 Full-Band Antenna

Download (531.99k)
DescriptionPart-Number
VP605033-605000-ee-ff
