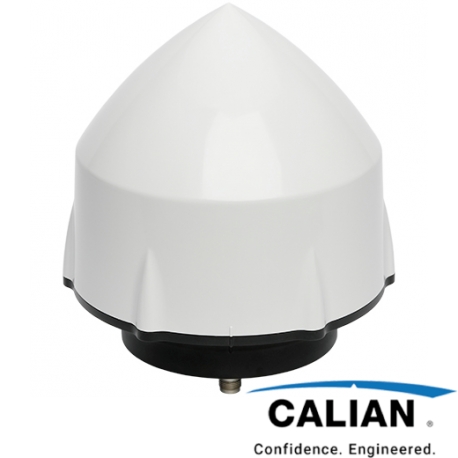

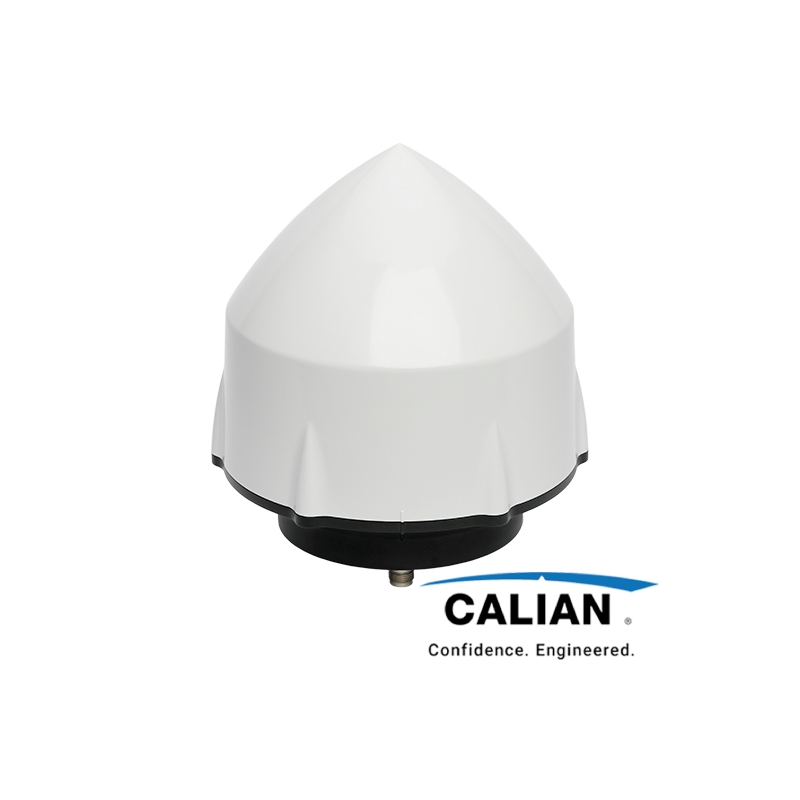

VP6150

VeraPhase® Full GNSS Antenna

More details

Key Features

  • Ultra-low axial ratios across full sky coverage (0°–180°)
  • Phase center variation under 1 mm for extreme precision
  • Low power consumption: 45 mA
  • Wide voltage input range: +2.7 to 24 VDC
  • Internal space for integrated PPP/RTK modules

Benefits

  • Consistent performance across all frequency bands
  • Full elevation tracking from horizon to zenith
  • High-precision signal reception
  • Superior multipath signal rejection
  • Compliant with IP67, REACH, and RoHS standards
  • Accelerated time-to-market for integration

Overview

The VP6150 VeraPhase® antenna from Calian® features advanced VeraPhase® technology, delivering full-spectrum GNSS coverage. It supports:

  • GPS/QZSS: L1, L2, L5
  • GLONASS: G1, G2, G3
  • Galileo: E1, E5a, E5b, E6
  • BeiDou: B1, B2, B2a, B3
  • QZSS: L6
  • NavIC: L5
  • SBAS: WAAS, EGNOS, GAGAN, MSAS

Engineered for Precision

Designed for high-precision reference stations, the VP6150 delivers exceptional performance across the entire GNSS bandwidth. Key performance highlights include:

  • Ultra-low axial ratios:
    < 0.5 dB at zenith, typically < 2 dB at the horizon — across all GNSS frequencies
  • Superior front-to-back ratio
  • Tight Phase Center Variation (PCV)
  • Stable Phase Center Offset (PCO) across all azimuth and elevation angles
  • High-reception gain across the full GNSS spectrum

Robust Signal Integrity

The VP6150 features a pre-filtered Low Noise Amplifier (LNA) with a high third-order intercept point (IP3), effectively minimizing signal degradation from strong out-of-band sources such as 700 MHz LTE. Despite this robust filtering, it maintains a low noise figure, ensuring clean and reliable signal reception.

Certified Accuracy

The VP6150 has been calibrated by GEO++, and its type mean calibration files are available through both the IGS and NGS databases, ensuring traceable and verifiable performance for professional applications.

If L-band correction service support is required, please see the VP6050.

Antenna FrequencyFull GNSS
MountSurvey Mount
BrandCalian

ANT_VP6150_DS

Data sheet for the Calian VP6150 Full GNSS Antenna

Download (481.29k)
DescriptionPart-Number
VP615033-615000-ee-ff
