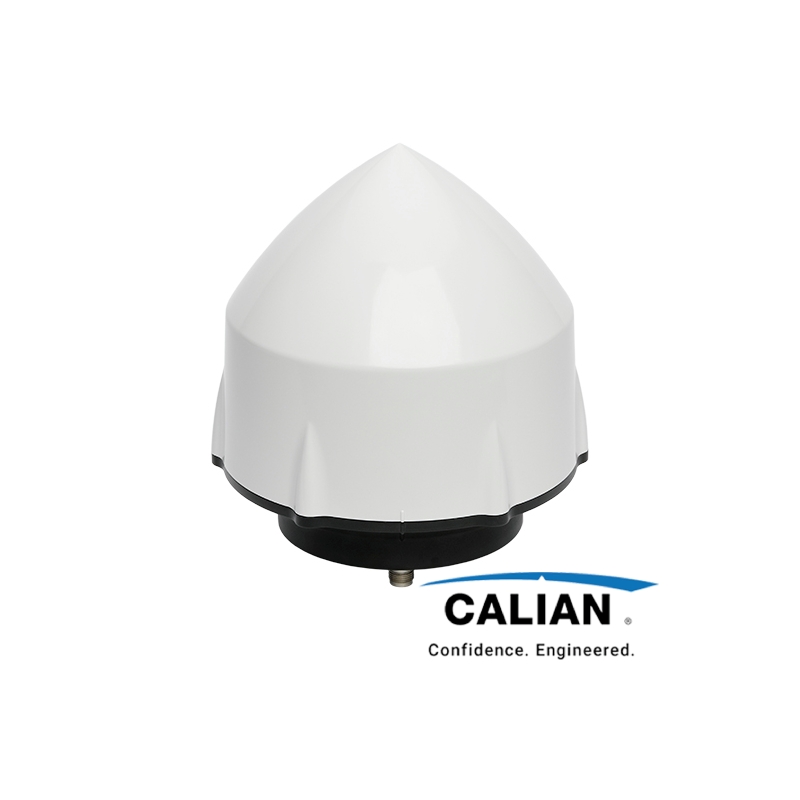

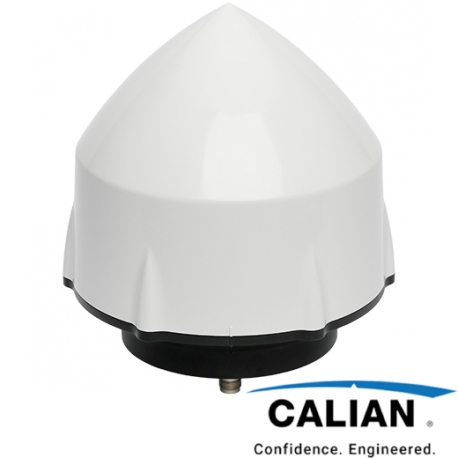

VP6135

VeraPhase® Full GNSS Antenna

More details


Key Features

  • Ultra-low axial ratios across full sky coverage (0°–180°)
  • Extremely tight phase center variation (<1 mm)
  • Low power consumption: 35 mA
  • Wide input voltage range: +2.7 to 24 VDC
  • Internal space for integrated PPP/RTK modules

Benefits

  • Consistent performance across all frequency bands
  • Full elevation tracking capability
  • High-precision signal reception
  • Superior multipath signal rejection
  • IP67-rated and compliant with REACH & RoHS standards
  • Accelerated time-to-market

Overview

The VP6135 VeraPhase® antenna by Calian® leverages advanced VeraPhase® technology to deliver exceptional performance across the entire GNSS spectrum. It supports:

  • GPS/QZSS: L1, L2, L5
  • GLONASS: G1, G2, G3
  • Galileo: E1, E5a, E5b, E6
  • BeiDou: B1, B2, B2a, B3
  • QZSS: L6
  • NavIC: L5
  • SBAS: WAAS, EGNOS, GAGAN, MSAS

Engineered for Precision

Designed for high-precision reference stations, the VP6135 offers outstanding performance across the full GNSS bandwidth. Key features include:

  • Ultra-low axial ratios:
    Less than 0.5 dB at zenith and typically under 2 dB at the horizon, across all GNSS frequencies.

  • Superior signal quality:
    Exceptional front-to-back ratio, minimal Phase Center Variation (PCV), and near-constant Phase Center Offset (PCO) across all azimuth and elevation angles.

  • High-reception gain:
    Delivers strong signal reception throughout the GNSS spectrum.

  • Robust LNA design:
    Features a pre-filtered Low Noise Amplifier with a high third-order intercept point (IP3), effectively minimizing interference from out-of-band signals such as 700 MHz LTE, while maintaining a low noise figure.

Certified and Calibrated

The VP6135 has been professionally calibrated by GEO++, with type mean calibration files available through both the IGS and NGS databases.


If L-band correction service support is required, please see the VP6035.

Antenna FrequencyFull GNSS
MountSurvey Mount
BrandCalian

ANT_VP6135_DS

Data sheet for the Calian VP6135 GNSS Antenna

Download (481.29k)
DescriptionPart-Number
VP613533-613500-ee-ff
