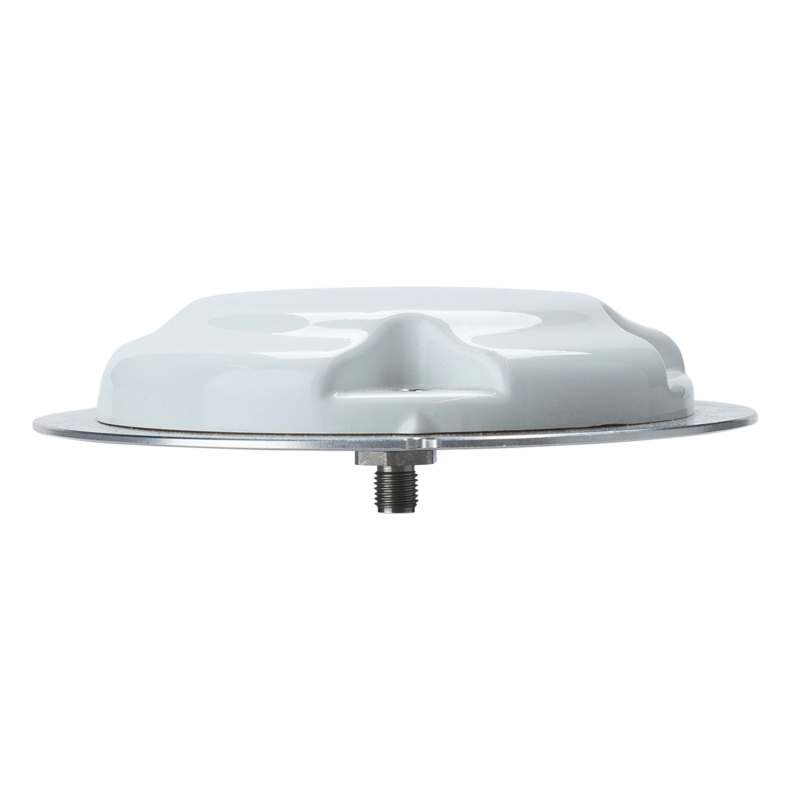

ARM990XF

Calian is thrilled to introduce the ARM990XF full-band plus L-Band GNSS antenna to its renowned line of GNSS antenna products. Utilizing Calian's patented Accutenna® technology, the ARM990XF provides comprehensive coverage for:

• GPS/QZSS: L1/L2/L5/L6
• GLONASS: G1/G2/G3
• Galileo: E1/E5a/E5b/E6
• BeiDou: B1/B2a/B2b/B3
• NavIC: L5 + L-Band

Designed for precision full-frequency positioning, the ARM990XF is ideal where lightweight and low profile are crucial.

Key Features:

• Two Form Factors:
  • 100 mm integrated ground plane: Weighs 140 g
  • 83 mm diameter: Weighs 138 g
• Dimensions: Both models are 19 mm tall and support the ARINC mini bolt pattern (2.0” x 1.66”)
• Precision: Average phase center variation of less than 10 mm for all frequencies and angles
• LEO Qualified Components: Available in both form factors

Models:

• ARM990XF-1: Integrated 100 mm ground plane
• ARM990XF-2: 83 mm diameter
• Connector Options: Female SMA or TNC

Advanced Technology:

The ARM990XF supports Calian's eXtended Filtering (XF) technology to mitigate interference from new LTE bands and other signals, ensuring optimal GNSS performance. This includes:

• North America: Ligado service (1526-1536 MHz)
• Europe: LTE Band 32 (1452-1496 MHz)
• Japan: LTE Bands 11 and 21 (1476-1511 MHz)

Housed in a weatherproof enclosure, the ARM990XF is one of the smallest and lightest triple-band precision Mini ARINC GNSS antennas on the market.
