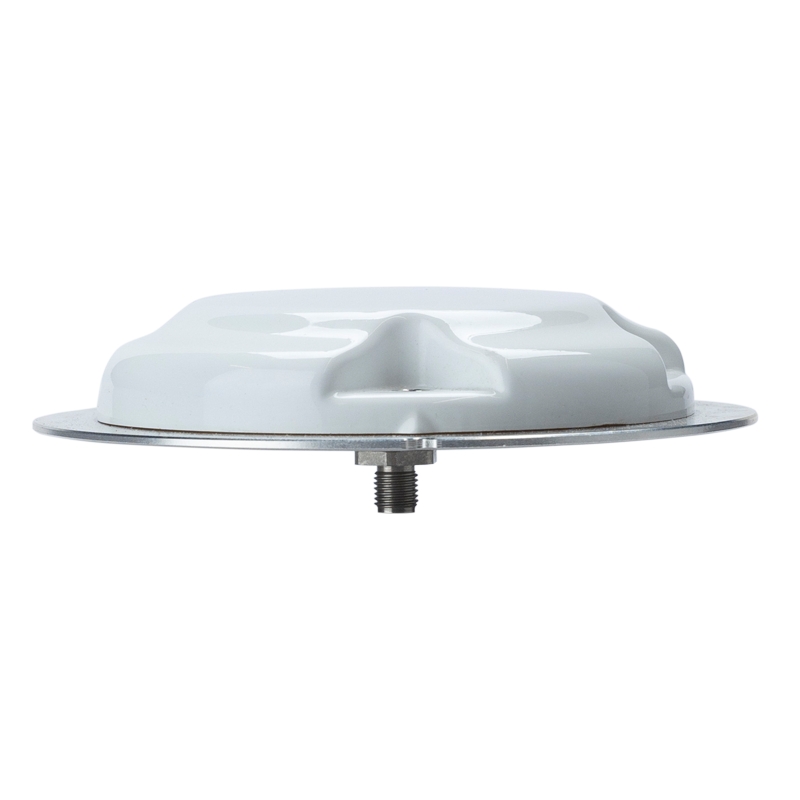

Calian is thrilled to introduce the ARM960P, a triple-band plus L-Band GNSS passive antenna, to its renowned line of GNSS antenna products. Utilizing Calian's patented Accutenna® technology, the ARM960P offers comprehensive coverage for GPS/QZSS L1/L2/L5, GLONASS-G1/G2/G3, Galileo E1/E5a/E5b, and BeiDou B1/B2a/B2b + L-Band.

Key Features:

• Precision Triple-Frequency Positioning: Designed for applications where lightweight and low profile are crucial.
• Two Form Factors:
  • 100 mm Integrated Ground Plane: Weighs 140 g.
  • 83 mm Diameter: Weighs 138 g.
• Compact Design: Both models are 19 mm tall and support the ARINC mini bolt pattern of 2.0” x 1.66”.
• High Accuracy: Average phase center variation of less than 10 mm for all frequencies and overall azimuths and elevation angles.
• LEO Qualified Components: Available in both form factors.

Models:

• ARM960P-1: Integrated 100 mm ground plane (ARM960P-1-S with LEO Space qualified components).
• ARM960P-2: 83 mm diameter (ARM960P-2-S with LEO Space qualified components).

Connectivity Options:

Available with either a female SMA or TNC connector.

Durability:

Housed in a weatherproof enclosure, ensuring reliability in various environmental conditions.
