TP5398SDK

TW5398 Smart GNSS Antenna SDK

More details

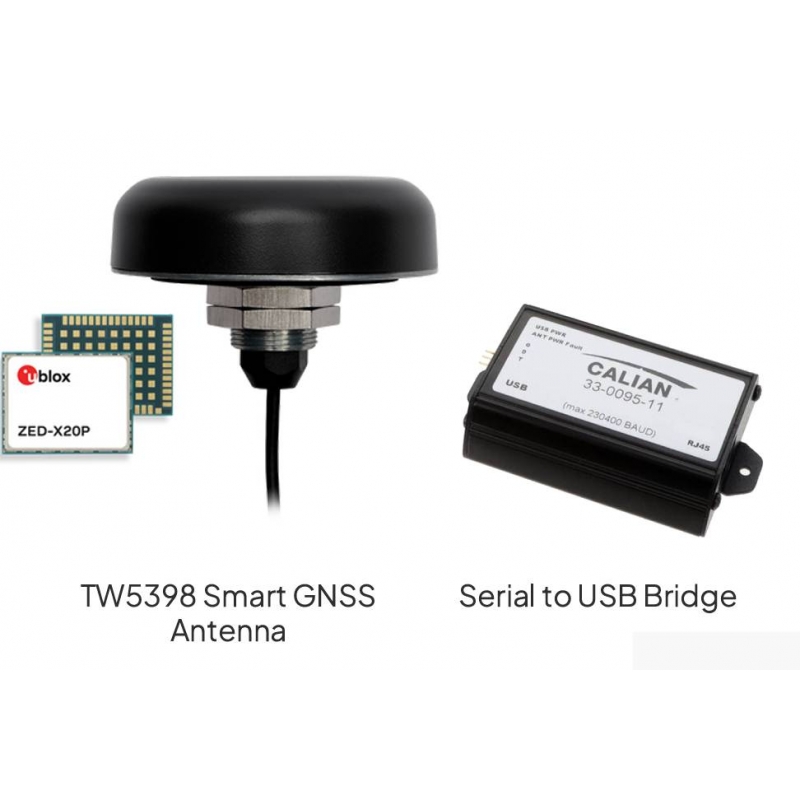

TP5398 SDK includes:

  • 1 x Calian TW5398 Full Band Smart GNSS Antenna/Receiver
    • 33-5398-09-10-05-PC0 (RS-422)
    • 33-5398-29-10-05-PC0 (RS-422)
  • Calian USB Serial Bridge
    • 33-0095-11 (RS-422)
    • 33-0095-16 (RS-232)
  • 1 x 23-0067-0: 10 cm Aluminum Ground Plane
  • Calian TruPrecision GNSS Dashboard Application
  • Complimentary trials of compatible corrections services* from our partners:
    • u-blox PointPerfect Flex
    • Swift Navigation Skylark
    • One Navigation Polaris RTK
*Note available services will depend on compatibility testing with ublox ZED-X20P

Full Band GNSS Innovation, Simplified

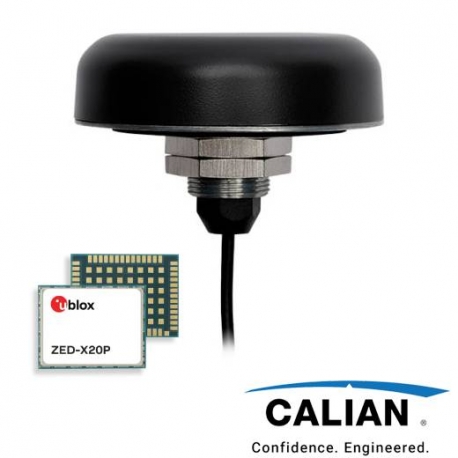

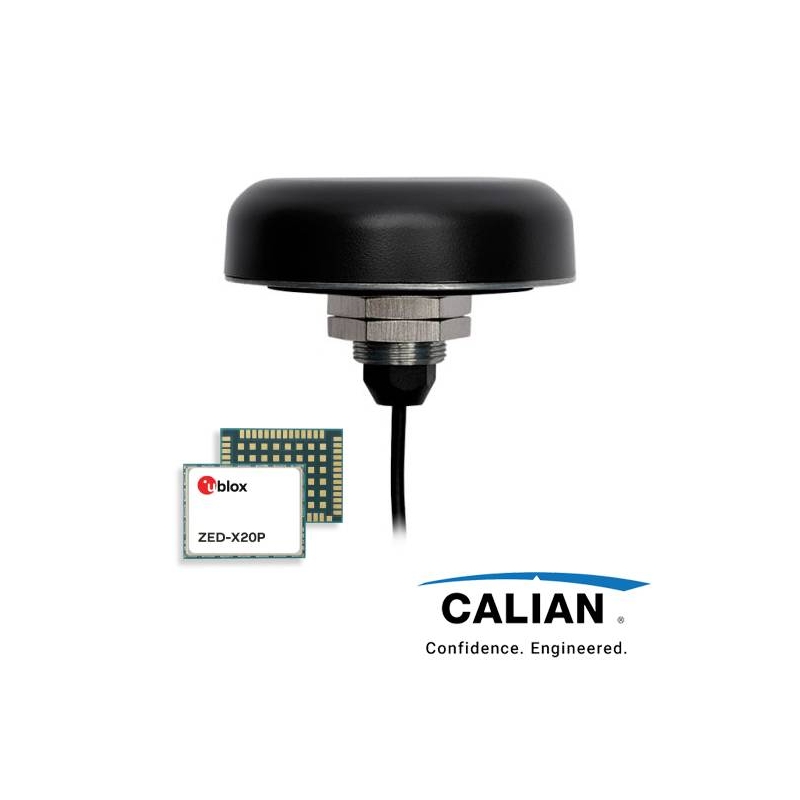

Unlock the next generation of GNSS performance with the TP5398SDK, Calian’s latest Smart GNSS Antenna Software Development Kit. This powerful SDK showcases the TW5398 Smart GNSS Antenna, featuring Calian’s cutting-edge Full Band GNSS Antenna technology integrated with the u-blox ZED-X20P GNSS receiver module.

Key Features

  • Full Band GNSS Support: Tracks L1, L2, L5, L6/E6, and L-Band signals for unmatched precision.
  • Accutenna® + XF Filtering: Delivers clean, interference-free signals to the ZED-X20P for centimeter-level accuracy.
  • Advanced Services Ready: Supports Galileo’s High Accuracy Service (HAS) and OSNMA anti-spoofing technology.
  • Plug-and-Play Integration: Optimized for seamless use with u-blox’s full band ZED-X20P module.

Connectivity & Interface

  • Serial Communication: RS-232 or RS-422 via RJ45 connector.
  • USB-Ready: The SDK includes a serial-to-USB converter for easy PC connection.

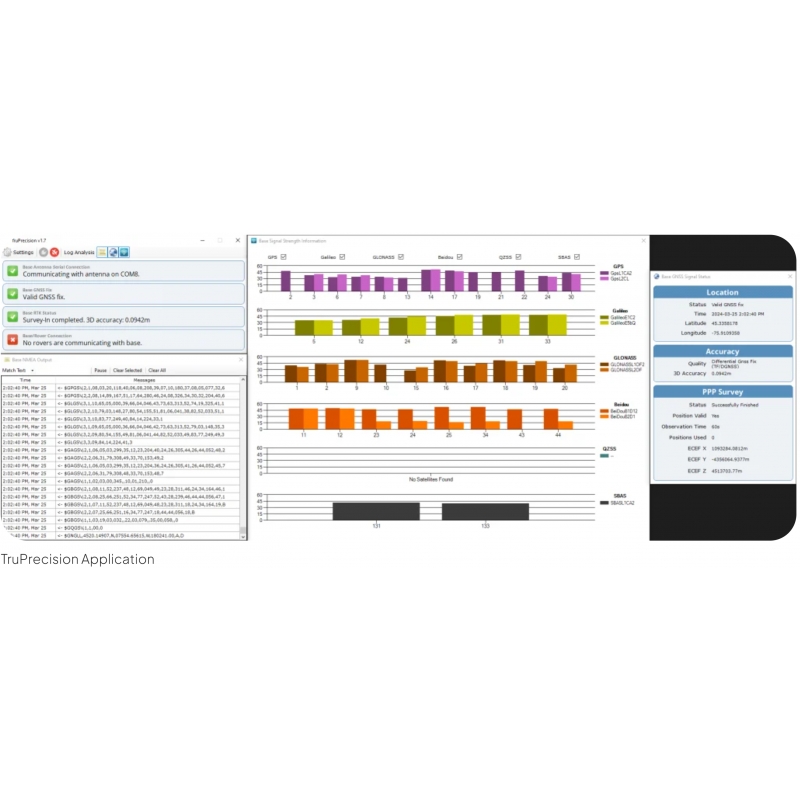

TruPrecision GNSS Dashboard

Included with the SDK is Calian’s TruPrecision GNSS Dashboard, a comprehensive software suite for:

  • Device configuration
  • Satellite monitoring
  • NMEA logging
  • NTRIP client setup for local and network corrections

ROS2® Integration

Accelerate your robotics projects with the included ROS2® driver, enabling seamless integration into ROS2-based systems.

ROS2® Drivers

Calian GNSS ROS2 Drivers

Complimentary Service Trials

Get started with trial access to compatible correction services*:

  • u-blox PointPerfect Flex
  • Swift Navigation Skylark
  • Point One Navigation Polaris

*Service availability depends on compatibility with the u-blox ZED-X20P module.

Other Informations

The TruPrecision SDK is a Windows-based application that:

  • Streams Skylark corrections to the TW5398 via NTRIP.
  • Provides a Virtual COM Port for integration with your existing applications.
  • Outputs high-precision position data in NMEA or UBX formats.

Antenna FrequencySmart Antennas
MountThrough-Hole
BrandCalian

ANT_TP5398SDK_DS

Datasheet for the Calian TW5398 Smart GNSS Antenna SDK

Download (1.48M)
DescriptionPart-Number
TP5398 Full Band Smart GNSS Antenna SDK (RS422 RJ45)33-TP5398SDK-0
TP5398 Full Band Smart GNSS Antenna SDK (RS232 RJ45)33-TP5398SDK-2
