CR7712EXF

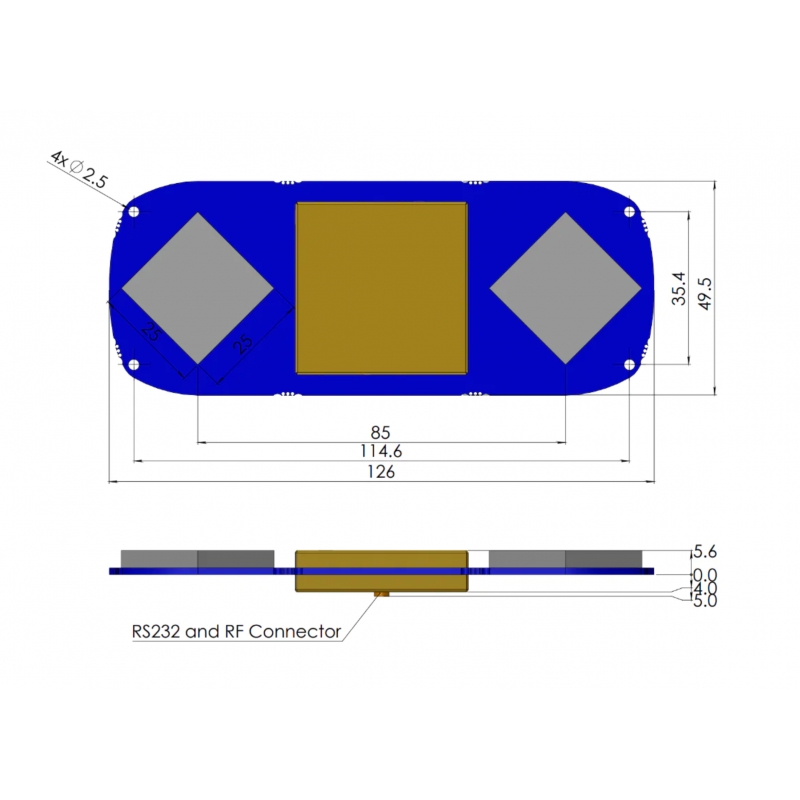

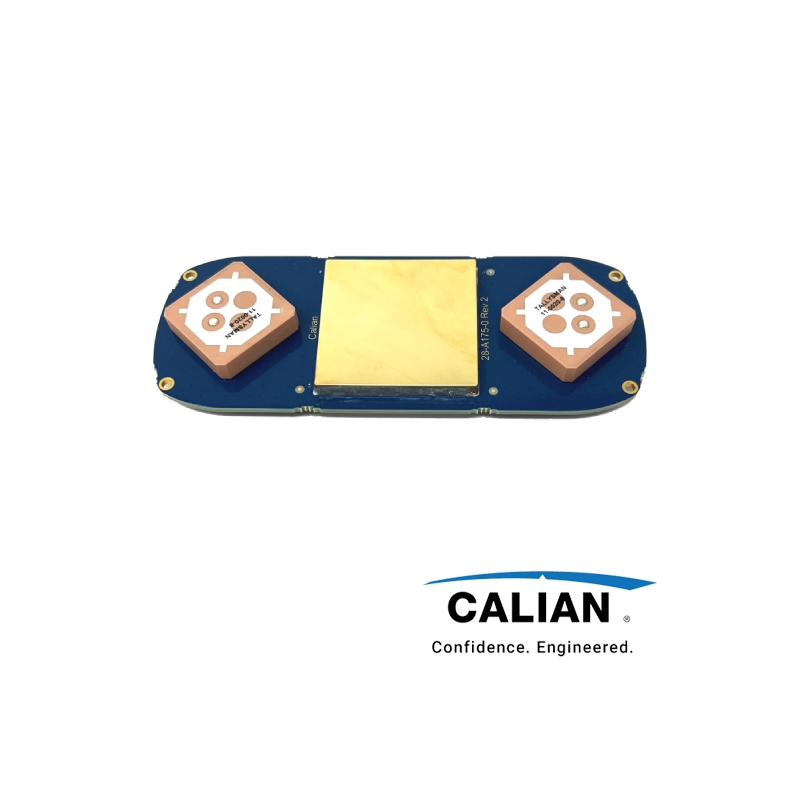

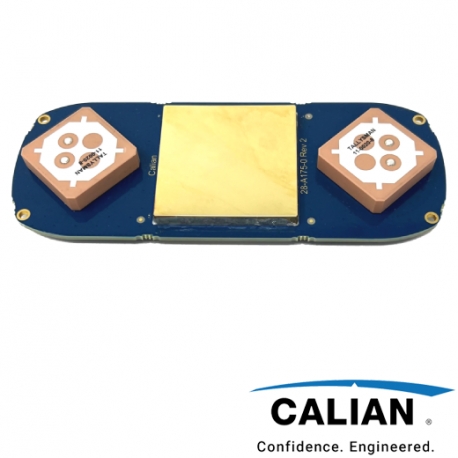

Anti-Jam Two Element Controlled Reception Pattern Antenna (CRPA)

More details

  • Critical Timing
  • Navigation in contested environs
  • Critical Infrastructure GNSS (airports, etc.)
  • Law enforcement and public safety
  • Formation of 1 planar null
  • Single band GNSS signal support
  • Supports eXtended Filtering (XF) providing sharp out-of-band signal rejection
  • Up to 20 dB null depth
  • Serial Interface provides state information
  • Compatible with standard GNSS receivers
  • Very low power consumption (60 mA typ.)
  • Small, lightweight, and low-profile form factor makes it ideal for many uses
  • Supports situation awareness, indicates CRPA state

CR7712EXF Embedded GNSS Antenna with Interference Mitigation

Precision GNSS Reception in Challenging RF Environments

The Calian CR7712EXF is a compact, embedded Controlled Reception Pattern Antenna (CRPA) designed to deliver clean, interference-free GNSS signals in the upper GNSS band (1559–1606 MHz). It intelligently steers a single planar null to suppress jamming or interference, ensuring reliable signal reception.

Key Features

  • Interference Mitigation
    Utilizes advanced CRPA technology to form RF nulls in the direction of jammers, and eXtended Filtering (XF) to deliver over 80 dB of out-of-band rejection (400 MHz to 3000 MHz), with sharp band edges for precise filtering.

  • Clean RF Output
    Outputs a standard RF signal compatible with all Commercial Off-The-Shelf (COTS) GNSS receivers—free from interference and jamming signals.

  • Real-Time Signal Awareness
    Integrated serial interface provides real-time antenna status, including jamming detection alerts, enabling quick diagnostics and situational awareness.

  • Multi-Constellation Support
    Supports GPS L1, Galileo E1, GLONASS G1, BeiDou B1, and GPS M-Code on L1.

  • Compact & Lightweight Design
    Combines antenna, interference mitigation, and null-forming technology in a single, surface-mountable enclosure with MCX RF and serial connectors.

  • Low Power Operation
    Employs a patented low-power analog interference detection and mitigation method, powered by Tallysman’s Accutenna® technology.

Applications

Ideal for defense, aerospace, and high-precision commercial applications where GNSS reliability is critical—even in RF-dense or contested environments.

Antenna FrequencyAnti Jamming CRPA
MountOEM / Embedded

ANT_CR7712EXF_DS

Datasheet for the Calian CR7712EXF Anti Jamming CRPA

Download (217.22k)
DescriptionPart-Number
CR7712EXF33-CR7712EXF-0
