ARM928XF Space-Qualified
Triple-Band Space-Qualified Antenna
- Autonomous vehicle tracking and guidance
- Precise GNSS positioning
- Precision agriculture
- Triple-frequency RTK and PPP receivers
- Law enforcement and public safety
- Augmented GNSS positioning
- Very low noise preamp (< 2.5 dB typ.)
- Tight phase centre variation
- High-gain LNA (28 dB typ.)
- Low current (45 mA typ.)
- ESD circuit protection (15 kV)
- Invariant performance from 2.5 to 16 VDC
- IP69K, REACH, RoHS, and S-9401.V1.0 compliant
- Excellent interference mitigation
- Excellent multipath rejection
- Increased system accuracy
- Excellent signal-to-noise ratio

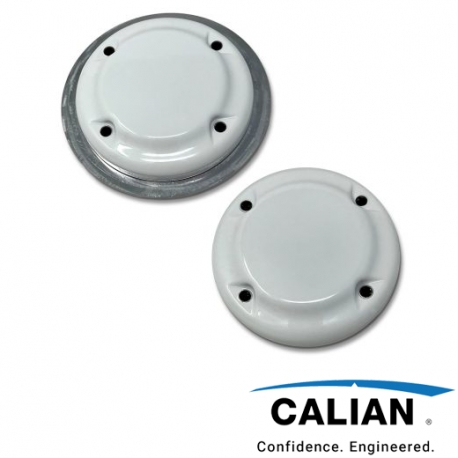

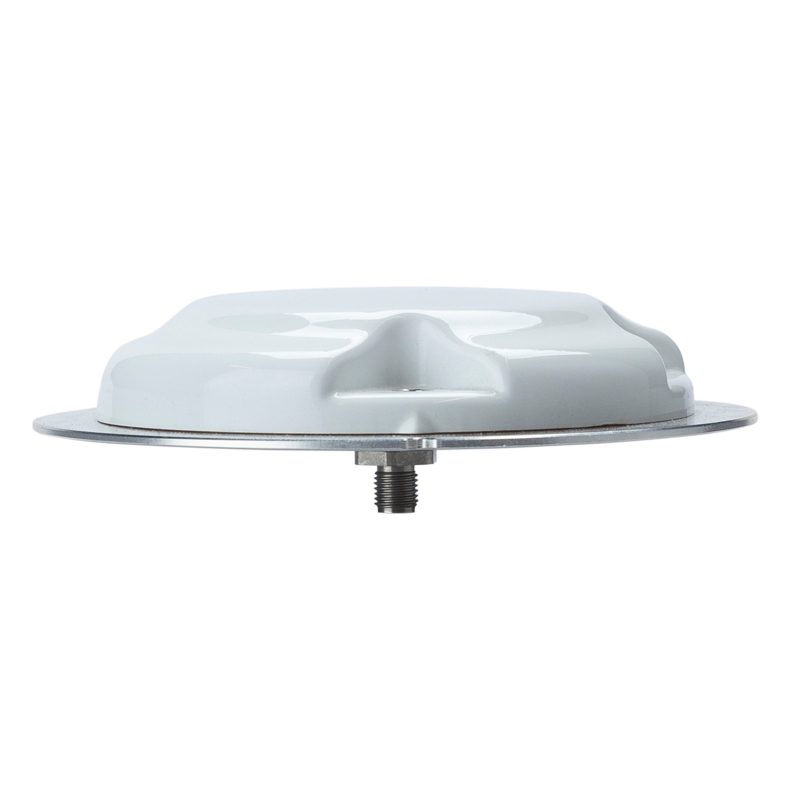

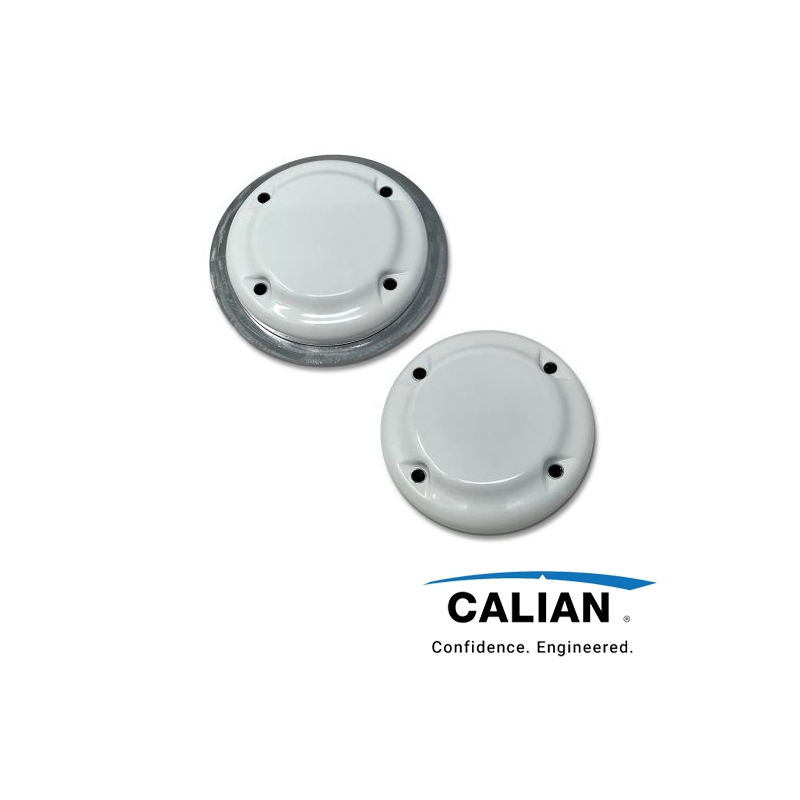

ARM928XF Space-Qualified GNSS Antenna
Compact. Precise. Space-Ready.
The ARM928XF is a space-qualified GNSS antenna engineered with Calian’s patented Accutenna® technology, delivering exceptional multi-frequency, multi-constellation performance. It supports:
- GPS/QZSS: L1, L2, L5
- GLONASS: G1, G2, G3
- Galileo: E1, E5a, E5b
- BeiDou: B1, B2a, B2b
- L-Band correction services
Precision Performance in a Miniature Form
One of the smallest and lightest triple-band Mini ARINC GNSS antennas available, the ARM928XF offers:
- Ultra-low phase center variation: <10 mm across all frequencies, azimuths, and elevation angles
- eXtended Filtering (XF) technology: Effectively mitigates out-of-band interference
- Space-grade reliability: Built with components qualified for Low Earth Orbit (LEO) missions
Rugged and Reliable
Designed for the harshest environments, the ARM928XF features:
- Wide operating temperature: -65°C to +125°C
- Robust construction: Passed NASA-STD-7001B vibration testing
- Extensive environmental testing
- Space-qualified materials and assembly
- End-of-line qualification testing

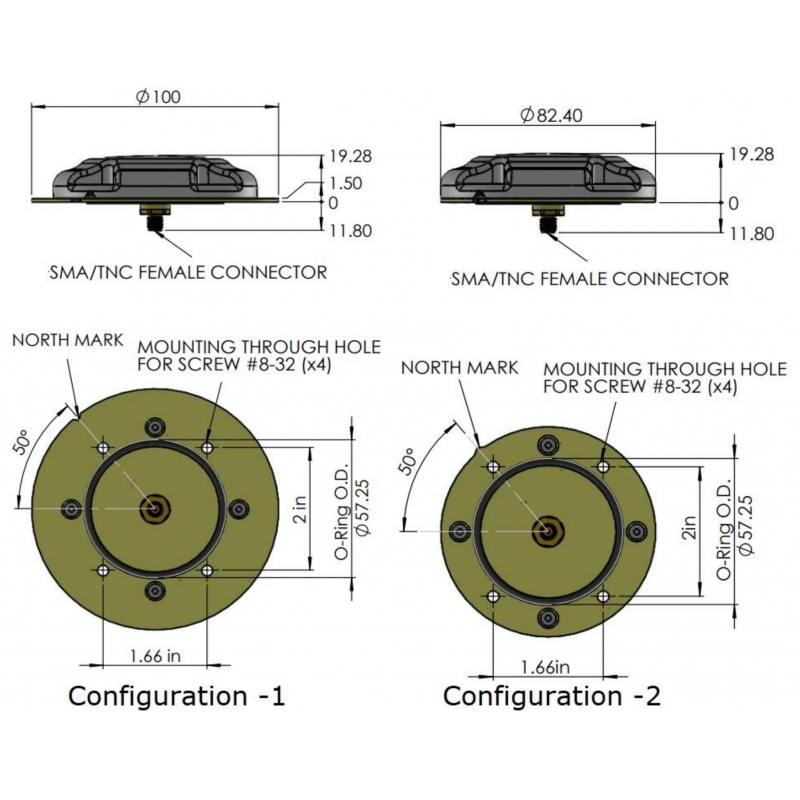

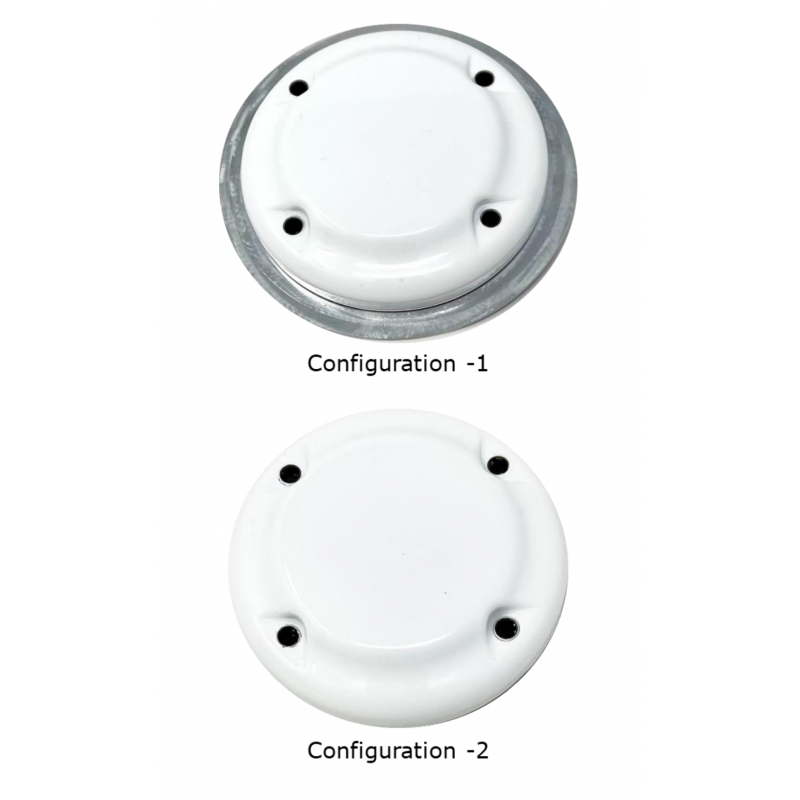

Two Compact Form Factors
Choose the configuration that fits your mission:
| Model | Diameter | Height | Weight | Ground Plane | Connector Options |
|---|---|---|---|---|---|
| Configuration -1 | 100 mm | 19 mm | 140 g | Integrated | SMA (F) or TNC (F) |
| Configuration -2 | 83 mm | 19 mm | 138 g | None | SMA (F) or TNC (F) |
Both models support the Mini ARINC bolt pattern (2.0” x 1.66”).
| L-band Correction | Required |
| Antenna Frequency | Triple Band GNSS |
| Mount | ARINC |
| Brand | Calian |
| Description | Part-Number |
|---|---|
| ARM928XF Space-Qualified | 33-ARM928XF-Y-XX-S |
