ARM928XF
Triple-Band + L-Band Precision
- Autonomous vehicle tracking and guidance
- Precise GNSS positioning
- Precision agriculture
- Triple-frequency RTK and PPP receivers
- Law enforcement and public safety
- Augmented GNSS positioning
- Very low noise preamp (< 2.5 dB typ.)
- Tight phase centre variation
- High-gain LNA (28 dB typ.)
- Low current (45 mA typ.)
- ESD circuit protection (15 kV)
- Invariant performance from 2.5 to 16 VDC
- IP69K, REACH, RoHS, and S-9401.V1.0 compliant
- Excellent interference mitigation
- Excellent multipath rejection
- Increased system accuracy
- Excellent signal-to-noise ratio
Triple-Band + L-Band Precision in a Compact, Lightweight Design

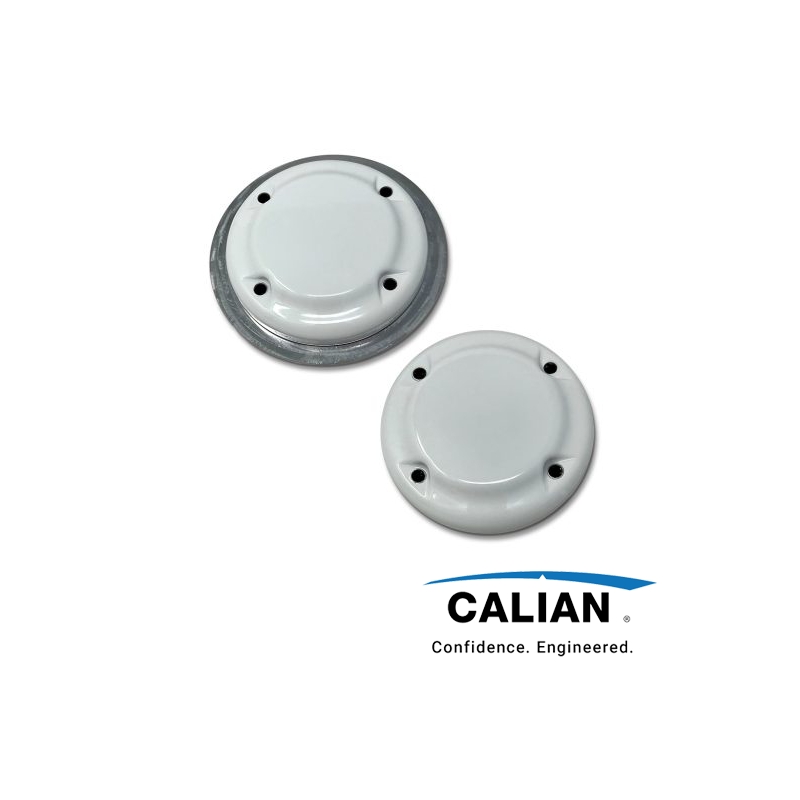

Calian® Wireless proudly presents the ARM928XF, a high-performance GNSS antenna engineered for precision triple-frequency positioning. Designed with Calian’s patented Accutenna® technology, the ARM928XF delivers exceptional signal reception across:
- GPS/QZSS: L1, L2, L5
- GLONASS: G1, G2, G3
- Galileo: E1, E5a, E5b
- BeiDou: B1, B2a, B2b
- L-Band: Correction services
Compact Form Factors for Versatile Integration

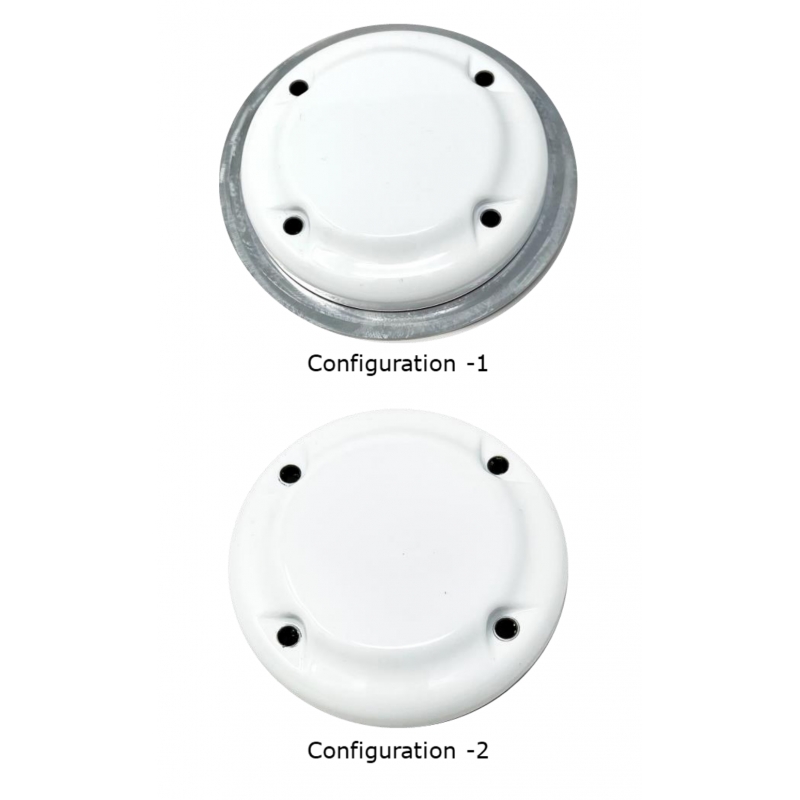

The ARM928XF is available in two lightweight, low-profile configurations:

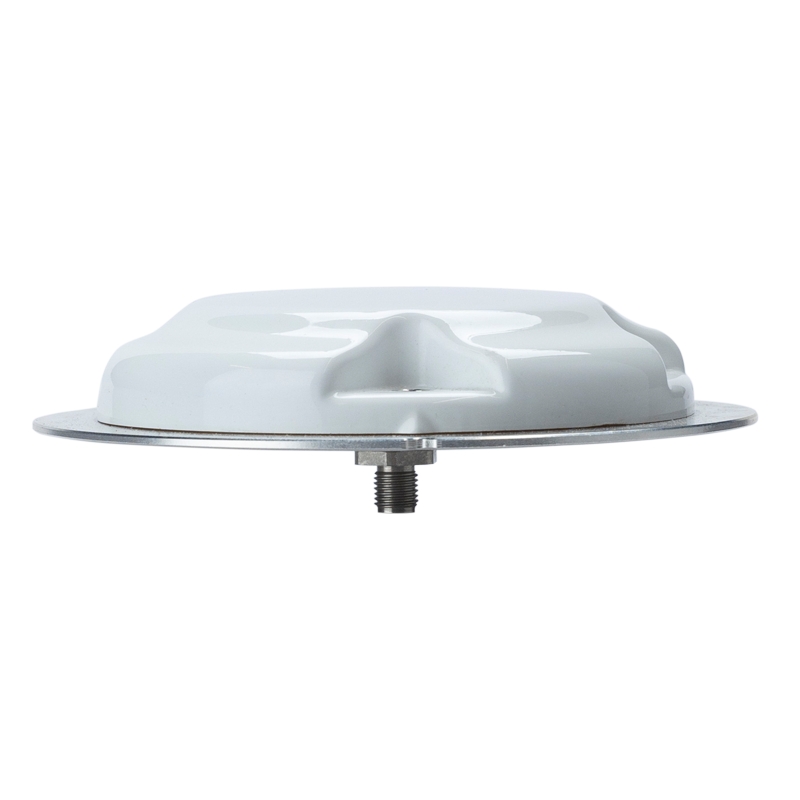

- Model 1: 100mm integrated ground plane | ~140g
- Model 2: 83mm diameter | ~138g
Both models are approximately 19mm tall and support the ARINC mini bolt pattern (2.0” x 1.66”).
Precision Performance
- Ultra-low phase center variation: <10mm across all frequencies, azimuths, and elevation angles
- One of the smallest and lightest housed triple-band Mini ARINC GNSS antennas on the market
Built for Harsh Environments
- IP67-rated weatherproof housing
- Available with LEO (Low Earth Orbit) space-qualified components
- Connector options: SMA or TNC (female)
Advanced Signal Protection with XF Technology
The ARM928XF features Calian’s eXtended Filtering (XF) technology, designed to mitigate interference from increasingly congested RF environments:
- North America: Ligado (1526–1536 MHz)
- Europe: LTE Band 32 (1452–1496 MHz)
- Japan: LTE Bands 11 & 21 (1476–1511 MHz)

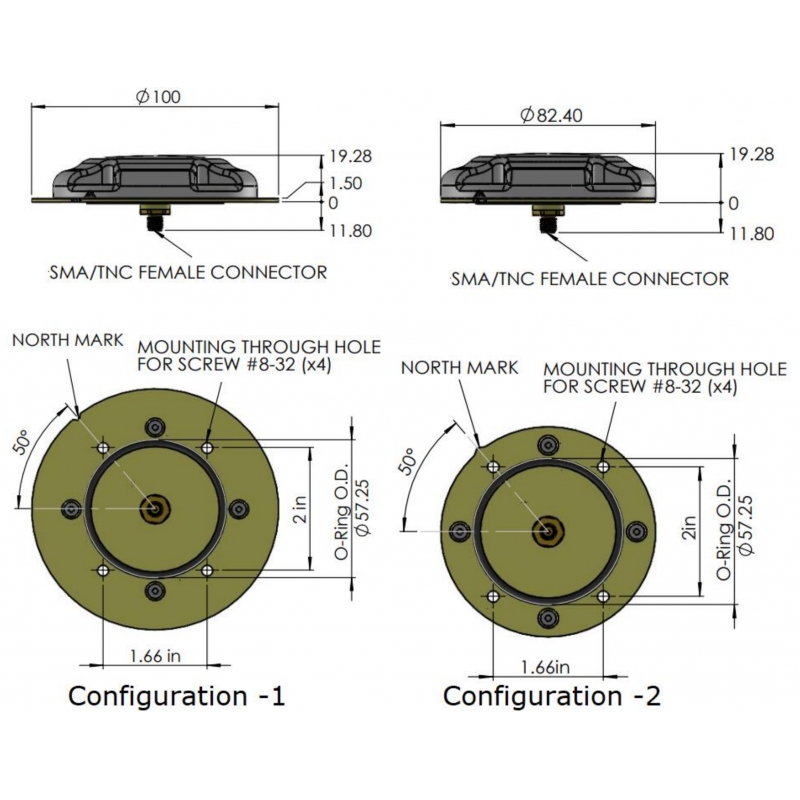

Available Models
| Model | Diameter | Height | Weight | Ground Plane | Connector Options |
|---|---|---|---|---|---|
| Configuration -1 | 100 mm | 19 mm | 140 g | Integrated | SMA (F) or TNC (F) |
| Configuration -2 | 83 mm | 19 mm | 138 g | None | SMA (F) or TNC (F) |
Both models support the Mini ARINC bolt pattern (2.0” x 1.66”).
| L-band Correction | Required |
| Antenna Frequency | Triple Band GNSS |
| Mount | ARINC |
| Brand | Calian |
| Description | Part-Number |
|---|---|
| ARM928XF | 33-ARM928XF-Y-XX |
