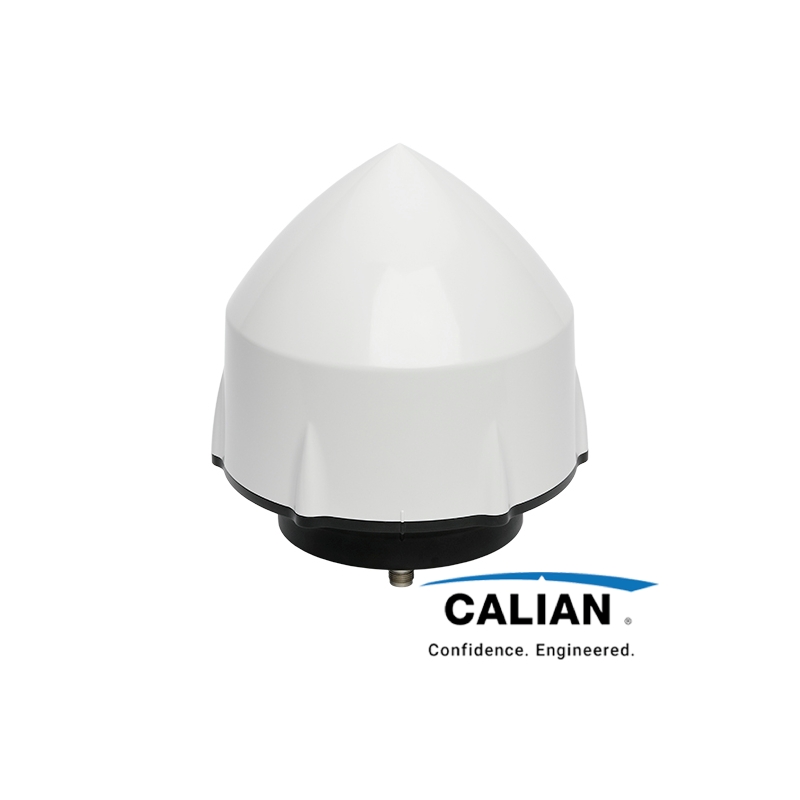

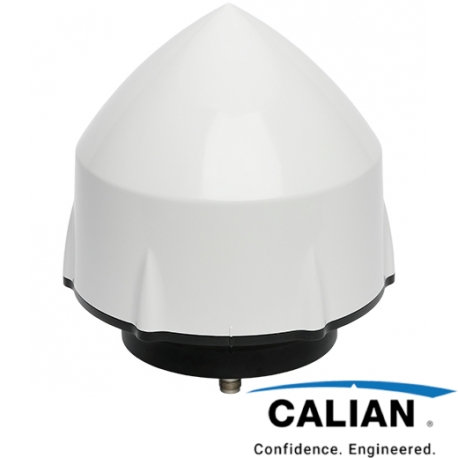

VP6000P

Multi-Constellation Full-Band Passive Antenna

More details

Applications

  • Surveying, RTK/PPP, high-precision GNSS
  • Reference networks, OEM integration, monitoring

Features

  • Low axial ratio (zenith to horizon)
  • Geo++® calibrated, <1 mm phase center variation
  • Space for integrated GNSS receiver

Benefits

  • Consistent multi-frequency performance
  • Wide elevation tracking, high precision
  • Strong multipath rejection
  • IP67, REACH & RoHS compliant
  • Faster time-to-market

The VeraPhase® 6000 is a patented, high-performance GNSS antenna designed to support the full GNSS spectrum along with L-Band correction services. Engineered for precision and reliability, it delivers consistent performance across all ky parameters—gain, axial ratio, phase center variation (PCV), and phase center offset (PCO)—throughout its entire bandwidth.

Unmatched Signal Quality Across All GNSS Frequencies

  • Ultra-low axial ratios:
    • Less than 0.5 dB at zenith
    • Typically under 3 dB at the horizon
  • Exceptional front-to-back ratio and >70% efficiency
  • Tight PCV and near-constant PCO across all azimuths and elevation angles

Superior to Traditional Geodetic Antennas

The VeraPhase® 6000 matches or exceeds the performance of geodetic and reference station antennas, including choke ring designs—while being lighter, more compact, cost-effective, and energy-efficient.

Certified and Calibrated

  • Calibrated by Geo++®
  • Type Mean Calibration files available via IGS and NGS databases

Full Spectrum Coverage

  • Low GNSS Band: 1160 MHz – 1300 MHz
  • L-Band Correction Services: 1539 MHz – 1559 MHz
  • High GNSS Band: 1559 MHz – 1606 MHz

Custom Integration Ready

An uncommitted PCB area within the antenna base allows for seamless integration of custom system boards, such as PPP or RTK GNSS receivers, enabling tailored solutions for advanced applications.

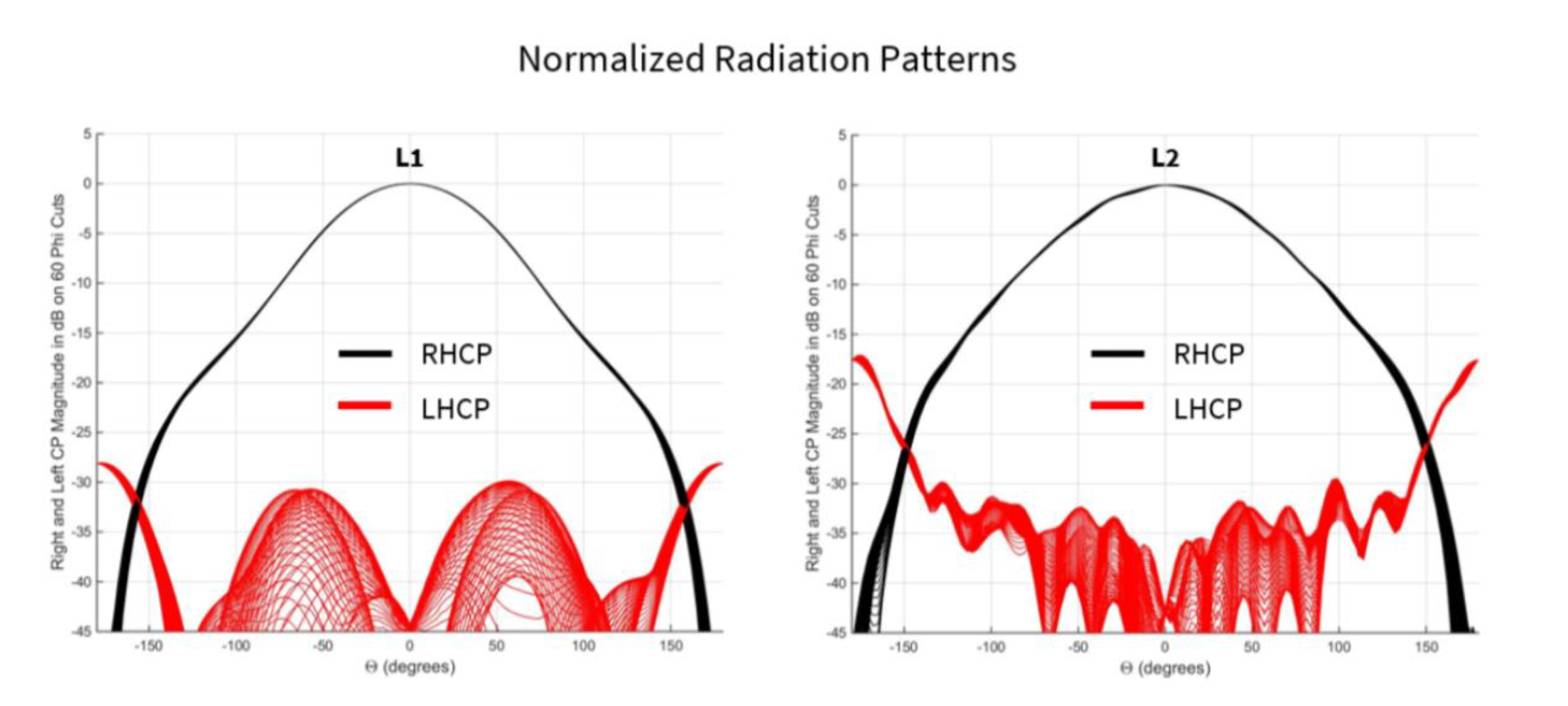

Normalized-Radiation-Patterns

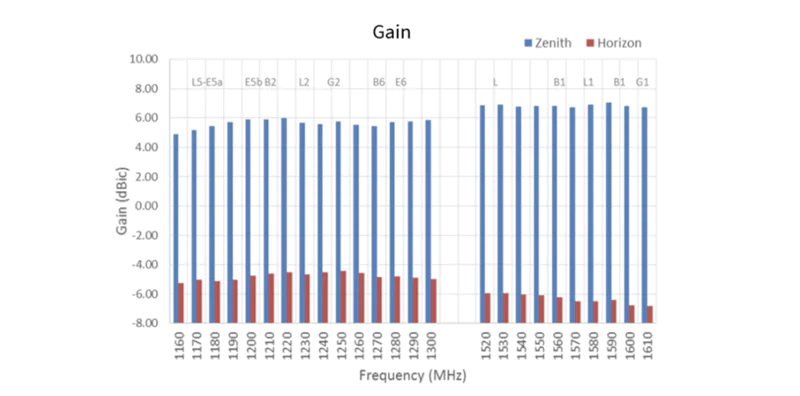

Gain

Antenna FrequencyFull GNSS
MountSurvey Mount
LNAPassive only
BrandCalian

ANT_VP6000P_DS

Data sheet for the Calian VP6000P Full-Band Passive Antenna

Download (502.25k)
DescriptionPart-Number
VP6000P33-6000P-ee-ff
