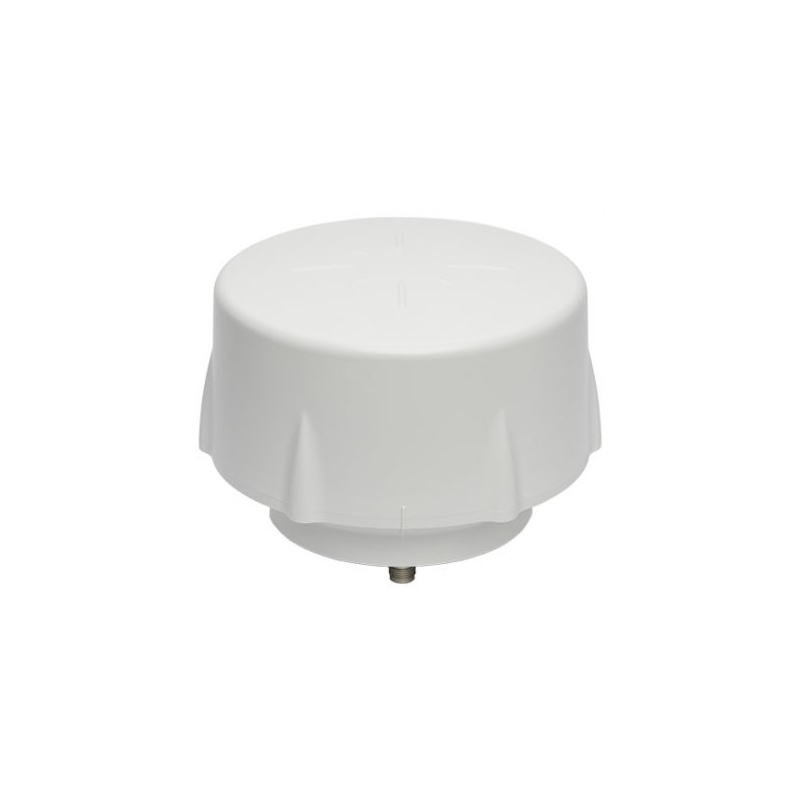

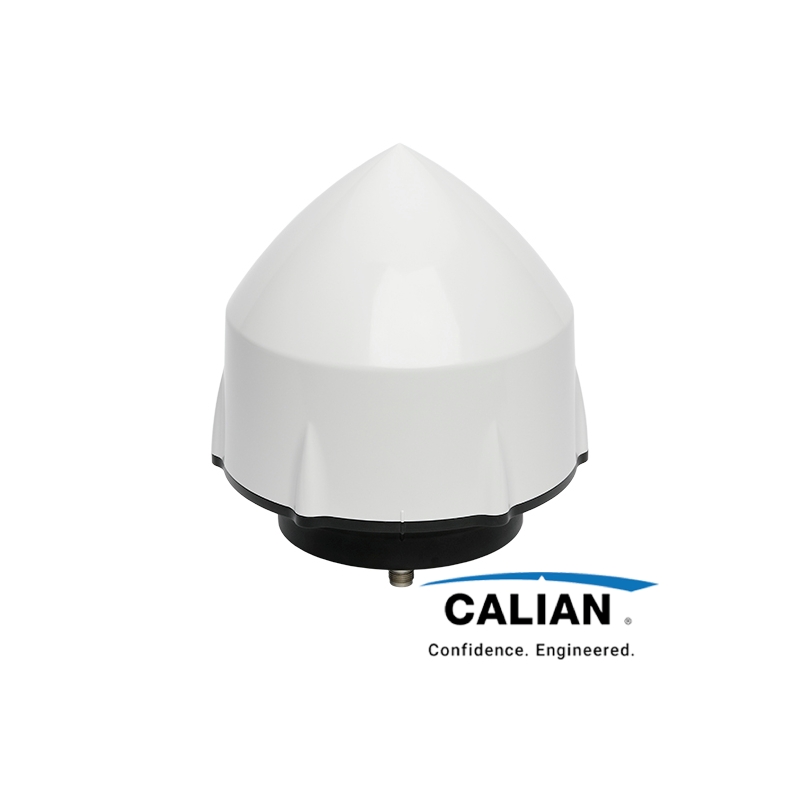

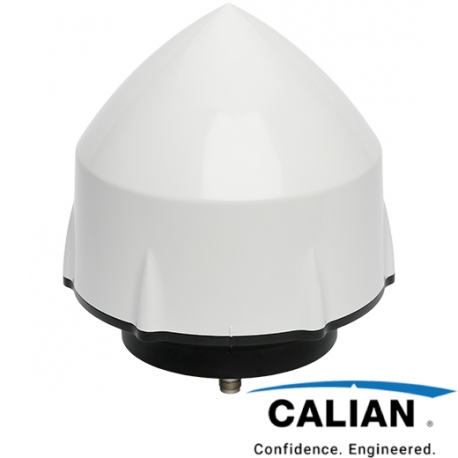

VP6350

VeraPhase® Triple Band GNSS Antenna

More details

Key Features

  • Ultra-low axial ratio across full sky coverage (0°–180°)
  • Extremely tight phase center variation (< 1 mm)
  • Minimal power consumption
  • Wide input voltage range: +2.7 to 24 VDC
  • Internal space for integrated PPP, RTK receiver, or other OEM modules

Key Benefits

  • Reliable, consistent performance across all frequency bands
  • Full elevation tracking capability
  • High-precision signal reception
  • Superior multipath signal rejection
  • Compliant with IP67, REACH, and RoHS standards
  • Accelerated integration and reduced time to market

Overview

The VP6350 VeraPhase® antenna leverages Calian’s advanced VeraPhase® technology to deliver exceptional performance across a wide range of GNSS signals, including:

  • GPS/QZSS: L1, L2, L5
  • GLONASS: G1, G2, G3
  • Galileo: E1, E5a, E5b
  • BeiDou: B1, B2
  • SBAS: WAAS, EGNOS, GAGAN, MSAS

Engineered for Precision

Designed for high-precision reference stations, the VP6350 offers outstanding performance across the full GNSS bandwidth. It is ideal for applications requiring superior signal quality and reliability.

Key Performance Highlights

  • Ultra-Low Axial Ratios:
    Less than 0.5 dB at zenith and typically under 2 dB at the horizon—across all GNSS frequencies and azimuths.

  • Exceptional Signal Integrity:
    Features a tight Phase Center Variation (PCV) and near-constant Phase Center Offset (PCO) across all elevation angles and frequency bands.

  • High Gain & Robust Filtering:
    Equipped with a high-reception gain LNA and a robust pre-filter to suppress out-of-band interference, including 700 MHz LTE signals. The high third-order intercept point (IP3) ensures minimal de-sensing and a low noise figure.

Integration-Ready Design

The VP6350 includes an uncommitted PCB space within its base, allowing seamless integration of custom system boards such as PPP or RTK GNSS receivers, or other specialized applications.

Antenna FrequencyTriple Band GNSS
MountSurvey Mount
BrandCalian

ANT_VP6350_DS

Data sheet for the Calian VP6350 Triple-Band GNSS Antenna

Download (487.84k)
DescriptionPart-Number
VP635033-635000-xx-yy
