VN-210 GNSS/INS

Overview

The VN-210 is a tactical-grade, high-performance GNSS-aided Inertial Navigation System (INS) designed for demanding applications. It integrates advanced 3-axis gyros, accelerometers, magnetometers, and a multi-band GNSS receiver (supporting L1/L2/E1/E5b bands), all powered by VectorNav’s proprietary Extended Kalman Filter (EKF) algorithms. This combination delivers precise, low-latency estimates of position, velocity, and attitude, even in challenging environments.

Key Features

• Dual-Band GNSS Receiver: The VN-210 features a multi-band GNSS receiver supporting L1, L2, E1, and E5b signals, enabling robust and accurate positioning across multiple satellite constellations (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS).
• Industry-Leading INS Performance: VectorNav’s EKF INS algorithm ensures continuous, high-accuracy position, velocity, and attitude solutions, excelling under dynamic conditions.
• Flexible Packaging: Available in two options:

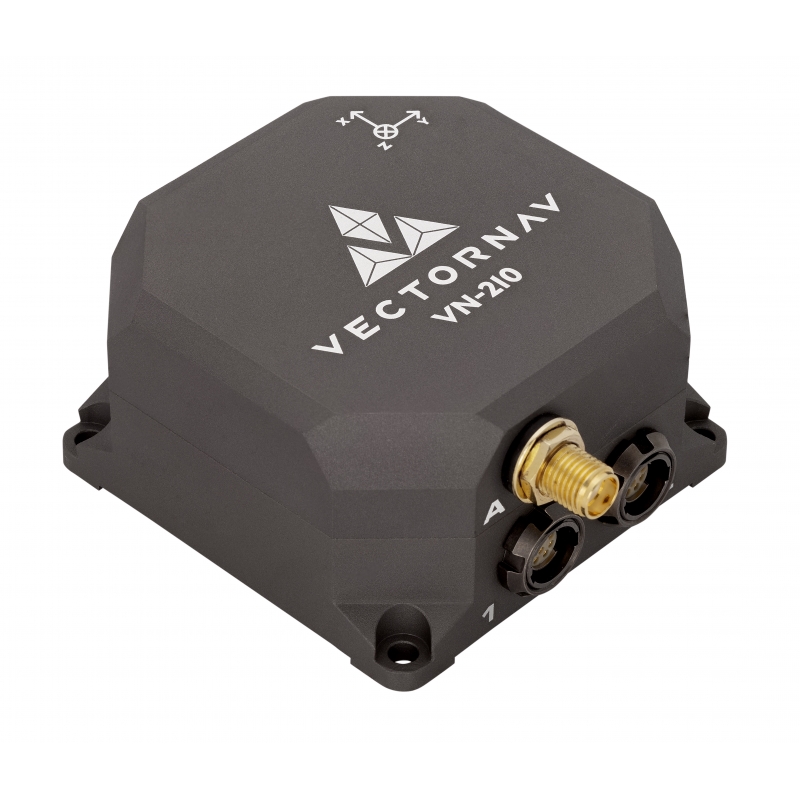

  • VN-210: Precision-milled, anodized aluminum enclosure for rugged applications.

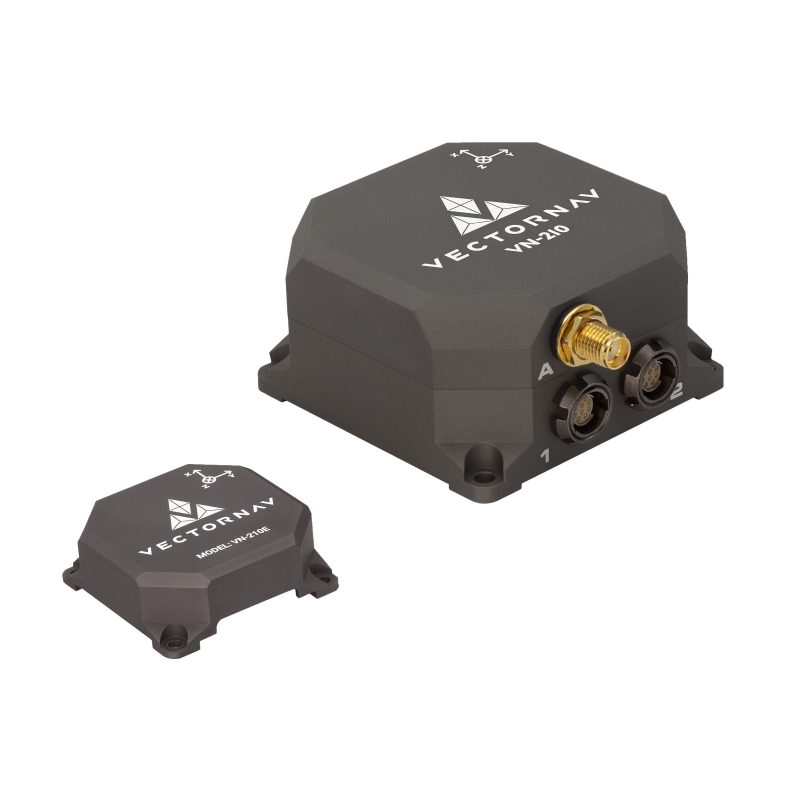

  • VN-210E: Ultra-compact, board-mount version for SWaP-C (Size, Weight, Power, and Cost) constrained environments, weighing just 14 grams.
• Robust Positioning: Supports RTK, PPK, and SAASM/M-Code GPS for enhanced accuracy. Compatible with external GNSS receivers and IMUs for maximum flexibility.
• User Configurable Messaging: Offers both ASCII and VectorNav Binary message formats for seamless integration.
• Software Compatibility: Shares a common communication protocol with the entire VectorNav product line, simplifying system integration.
• True Inertial Navigation: No mounting orientation restrictions or configuration modes; automatic filter initialization and dynamic alignment for ease of use.
• ITAR-Free and Made in the USA: Ensures global availability with short lead times.

Performance Highlights

• Dynamic Heading Accuracy (INS): 0.05°–0.1°
• Dynamic Pitch/Roll Accuracy (INS): 0.015°
• Gyro In-Run Bias Stability: 0.6°/hr typical
• Horizontal Position Accuracy: 1.0 m RMS (standard), 0.01 m + 1 ppm CEP (RTK)
• Velocity Accuracy: < 0.02 m/s
• Output Data Rate: Up to 800 Hz (IMU), up to 400 Hz (position, velocity, attitude)
• Operating Temperature Range: –40°C to +85°C

Environmental and Mechanical

• VN-210: IP68 rated, MIL-STD-810G vibration and shock, MIL-STD-461G EMI, DO-160G temperature, MIL-STD-1275E electrical compliance.
• VN-210E: Compact board-to-board interface with U.FL connector for GNSS antenna.

Advanced GNSS Capabilities

• RTK and PPK Support: Enables centimeter-level positioning accuracy with external RTCM 3 inputs and exportable RINEX data.
• Raw GNSS Data Outputs: Provides raw pseudorange, Doppler, and carrier phase data for advanced post-processing.
• Dual I/O Connectors: Facilitates integration with external receivers and sensors.

Reliability and Quality

Each VN-210 and VN-210E undergoes rigorous calibration and acceptance testing at VectorNav’s AS9100 certified facility. Performance specifications are validated through comprehensive field testing and real-world applications.

Availability

• ITAR-Free: Available globally.
• Made in the USA: Short lead times.
