VN-310 DUAL GNSS/INS

The VN-310 is a high-performance, tactical-grade Dual Antenna GNSS-Aided Inertial Navigation System. Leveraging advanced inertial sensor and GNSS technology, it integrates 3-axis accelerometers, gyros, magnetometers, and two multi-band L1/L2/E1/E5b GNSS receivers. This compact solution delivers precise position, velocity, and attitude data in both static and dynamic environments.

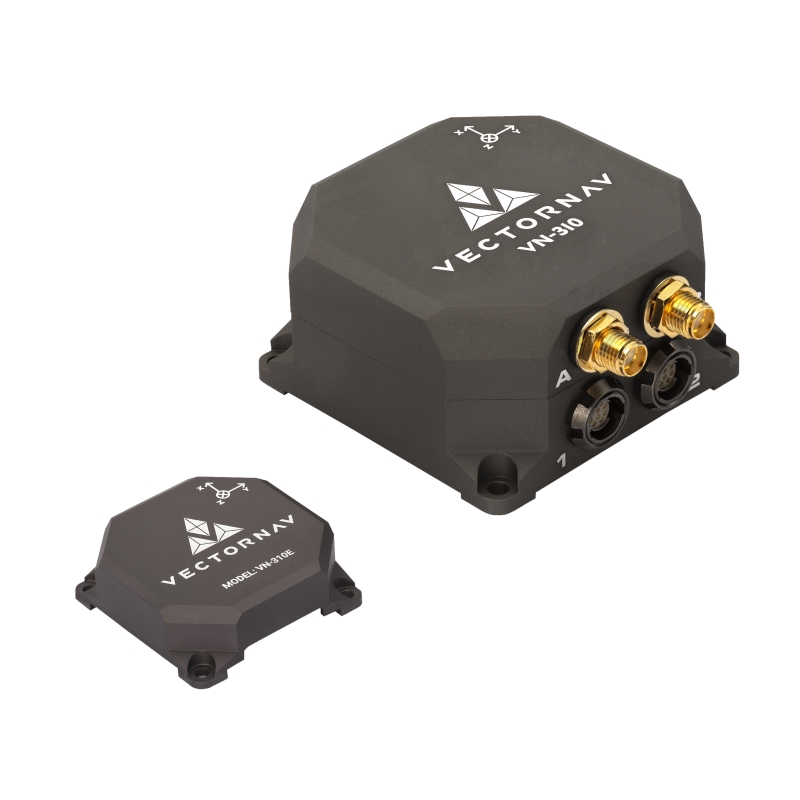

Packaging Options

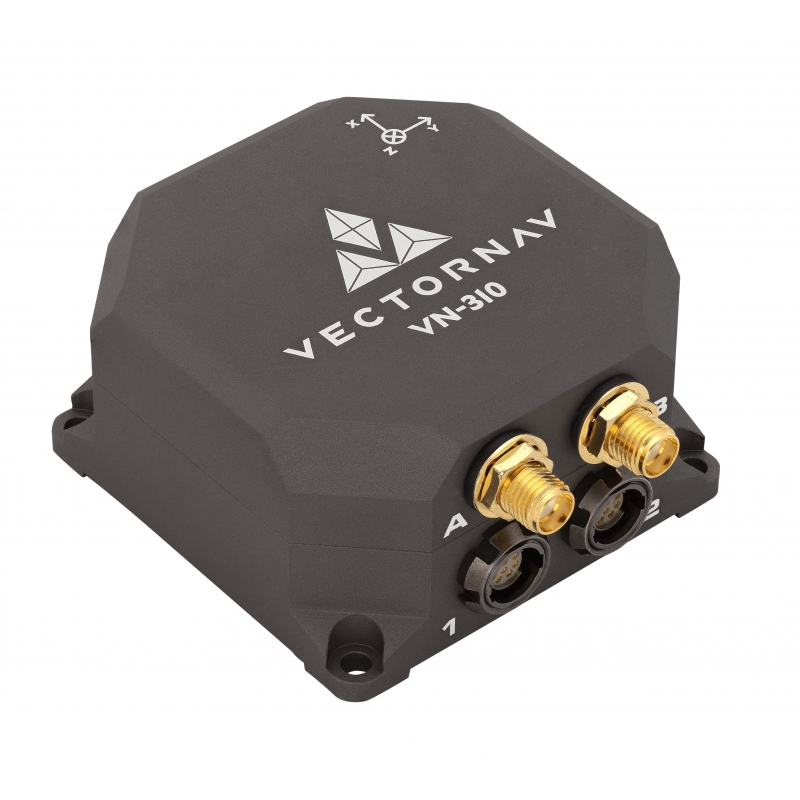

• VN-310: Precision-milled, anodized aluminum enclosure.

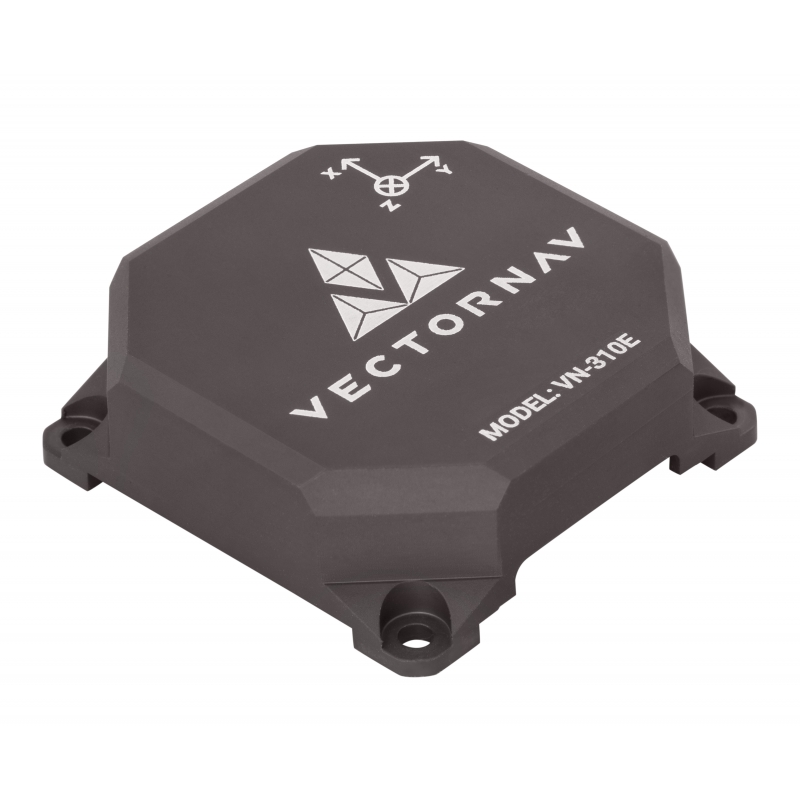

• VN-310E: Ultra-compact, board-mount version for SWaP-C constrained applications.

Both models are certified to MIL-STD and DO-160G standards, making them ideal for demanding military and aerospace use. The VN-310E offers exceptional size and weight advantages without compromising tactical-grade performance.

Key Features

• True Inertial Navigation: No mounting orientation restrictions; automatic filter initialization and dynamic alignment.
• User Configurable Messaging: Supports ASCII and VectorNav Binary protocols.
• Seamless Integration: Shares a common communication protocol with the entire VectorNav product line.
• RTK/PPK Capable: Supports external RTCM 3 inputs and exportable RINEX data.
• Multi-Band GNSS: Integrated L1/L2/E1/E5b GNSS receiver.
• Rugged & Reliable: MIL-STD-810, MIL-STD-461G, DO-160G, and IP68 rated.
• ITAR-Free & Made in the USA: Fast lead times and global availability.

Performance Highlights

• Dynamic Heading Accuracy (INS): 0.05°–0.1°
• Static Heading Accuracy (GNSS-Compass): 0.15°
• Dynamic Pitch/Roll Accuracy (INS): 0.015°
• Gyro In-Run Bias Stability: 0.6°/hr
• Low SWaP (VN-310E): 31 x 31 x 12 mm, 15 grams, <1.6 W

Advanced Navigation Capabilities

• GNSS-Compass: Dual onboard GNSS receivers provide highly accurate heading under static and low dynamic conditions.
• Automatic Heading Transition: Effortlessly switches between magnetic heading, INS operation, and GNSS-Compass as needed.
• Continuous Attitude Solution: Proprietary Extended Kalman Filter INS delivers coupled position, velocity, and attitude across the full 360° range.
• Comprehensive Calibration: Each unit is individually calibrated for bias, scale factor, misalignment, and temperature from -40°C to +85°C.

Performance Specifications

• Heading (INS): 0.05° to 0.1°, 1σ
• Heading (GNSS-Compass): 0.08° to 0.6° RMS (depending on baseline)
• Pitch/Roll (INS): 0.015°, 1σ
• Horizontal Position Accuracy: 1.0 m RMS
• RTK Position Accuracy: 0.01 m + 1 ppm CEP
• Velocity Accuracy: <0.02 m/s
• Gyro In-Run Bias Stability: <1°/hr (0.6°/hr typical)
• Accelerometer In-Run Bias Stability: <10 μg

Environmental & Mechanical

• Operating Temperature: -40°C to +85°C
• MTBF: >21,000 hours (VN-310), >22,000 hours (VN-310E)
• Ingress Protection: IP68 (VN-310)
• Shock & Vibration: MIL-STD-810G compliant

GNSS Receiver

• 184 Channel, Multi-Constellation: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
• Time-To-First-Fix: 29 s (cold), 2 s (hot)
• Altitude Limit: 50,000 m
• Velocity Limit: 500 m/s

Interfaces

• VN-310: RS-422 (optional RS-232), auxiliary RS-422
• VN-310E: Dual Serial TTL, 24-pin board-to-board connector, dual U.FL for GNSS antennas
• Data Output Rates: Up to 800 Hz (IMU), up to 400 Hz (position, velocity, attitude)
• GNSS PPS: 30 ns RMS, 60 ns 99%

Why Choose the VN-310?

• Unmatched Performance: Delivers tactical-grade navigation in the most challenging environments.
• Flexible Integration: Compact options for SWaP-C constrained designs.
• Rugged Reliability: Built and tested to the highest military and aerospace standards.
• Global Support: ITAR-free, made in the USA
